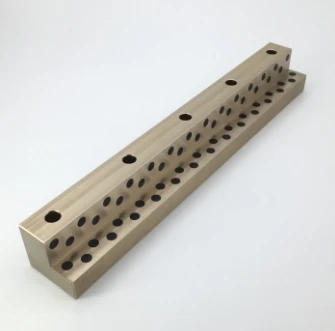

SOLID-SELF-LUBRICATION BUSHES-JSL L SHAPE GUIDE RAIL BEARINGS
SOLID-SELF-LUBRICATION BUSHES-JSL series
JSL tus kheej-lubricating bearings yog ib hom kev hnav- cov khoom tiv thaiv uas ua tau zoo tshwj xeeb hauv kev ua haujlwm tshwj xeeb, tshwj xeeb tshaj yog nyob rau hauv cov ntawv thov uas muaj qhov kub thiab txias, hnyav loads, tsis tshua muaj ceev, thiab qhov twg nws nyuaj rau tsim cov roj zaj duab xis..
Cov ntaub ntawv tseem ceeb:
| Yam ntxwv Dimension | Kev piav qhia |
|---|---|
| Khoom Lub Npe | JSL L-Type Copper-Based Embedded Self-Lubricating Slider |
| Core Structure | Hlau Matrix (feem ntau yog siab - zog tooj dag) + Embedded Solid Lubricant (graphite lossis molybdenum disulfide) |
| Tus kheej -Lubrication Principple | Kev sib txhuam thaum tshav kub kub ua rau cov roj nplua nyeem los ua cov yeeb yaj kiab hloov chaw ntawm qhov chaw sib txhuam, ua tiav nws tus kheej tsis tu ncua -lubrication |
| Kev ua yeeb yam tseem ceeb | High hnav tsis kam, kub tsis kam (300 degree), corrosion kuj, siab load- nqa peev xwm (qhov kawg dynamic load 100N / mm²) |
| Cov ntawv thov tseem ceeb | Metallurgical nruam casting tshuab, dov khoom, mining machinery, ships, engineering machinery guide rails, thiab lwm yam. |
Nta thiab qhov zoo ntawm JSL Bearings
🔩
Kev ua haujlwm ruaj khov ntawm JSL tus kheej- lubricating bearings nyob rau hauv hnyav hnyav yog feem ntau vim lawv cov khoom siv thiab cov qauv tsim:
High -lub zog tooj dag matrix: Muab siab hardness thiab zoo heev hnav tsis kam. Nws hardness (HB210-270) yog qhov siab dua li ntawm cov tooj liab zoo tib yam, thiab nws cov hnav tsis kam yog kwv yees li ob npaug.
Embedded khoom lubricant: Feem ntau graphite los yog molybdenum disulfide (MoS₂). Cov lubricants no maj mam tso tawm thaum lub sij hawm kev sib txhuam, tsim ib tug ruaj khov khoom lubricating zaj duab xis ntawm bearing nto, txo cov coefficient ntawm kev sib txhuam (μ<0.16) and minimizing wear on the shaft.
L-zoo li tus qauv tsim: JSL bearings feem ntau muaj L-zoo li tus ntoo khaub lig- ntu. Qhov kev tsim no yooj yim rau kev teeb tsa thiab tso rau hauv cov kev taw qhia kev siv tshuab, sliders, thiab lwm yam khoom, muab kev txhawb nqa ruaj khov.

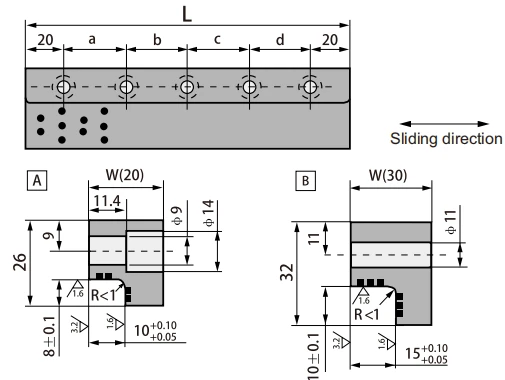

JSL L Daim ntawv qhia kev tsheb ciav hlau tus qauv metric loj
Unit: mm
| Txuj No. | W | L | Bolt Qhov | Sketch | |||||
| a | b | c | d | Loj | Q'ty | ||||
| JSL-20 × 100 | 20 | 100 | 60 | -- | -- | -- | M8 | 2 | A |
| JSL-20 × 150 | 150 | 55 | 55 | -- | -- | 3 | |||
| JSL-20 × 200 | 200 | 55 | 50 | 55 | -- | 4 | |||
| JSL-30 × 100 | 30 | 100 | 60 | -- | -- | -- | M10 | 2 | B |
| JSL-30 × 150 | 150 | 55 | 55 | -- | -- | 3 | |||
| JSL-30 × 200 | 200 | 55 | 50 | 55 | -- | 4 | |||
| JSL-30 × 250 | 250 | 70 | 70 | 70 | -- | 4 | |||
| JSL-45 × 200 | 45 | 200 | 55 | 50 | 55 | -- | 4 | C | |
| JSL-45 × 250 | 250 | 70 | 70 | 70 | -- | 4 | |||
| JSL-45 × 300 | 300 | 65 | 65 | 65 | 65 | 5 | |||
| JSL-45 × 350 | 350 | 80 | 75 | 75 | 80 | 5 | |||
Cov cheeb tsam tseem ceeb ntawm daim ntawv thov
JSL tus kheej-lubricating bearings yog siv dav hauv cov haujlwm hauv qab no:
Metallurgical cov cuab yeej: Cov kev taw qhia thiab kev txhawb nqa rau cov cav tov nruam thiab dov mills.
Heavy machinery: Mining machinery thiab loj -scale siv tshuab.
Kev Thauj Mus Los: Kev txhawb nqa tsheb ciav hlau, nkoj nkoj.
Kev Siv Lub Tsheb: Hnav- qhov chaw tiv taus rau forklifts thiab lwm yam khoom siv.
Lwm tus: Chav turbines, dej turbines, txhaj tshuaj molding tshuab, thiab lwm yam.
⚙️Kev xaiv thiab daim ntawv thov tswv yim⚙️
Cov ntsiab lus tseem ceeb rau kev txiav txim siab: Thaum xaiv cov kabmob, ua tib zoo saib xyuas qhov kawg dynamic load, siab tshaj plaws kev khiav hauj lwm kub, coefficient ntawm kev sib txhuam, thiab zawv zawg ceev (0.4 m / s rau qhuav kev sib txhuam, 5.0 m / s rau roj lubrication).
Nrog rau Cov Qauv Tshwj Xeeb thiab Cov Lus Qhia Tshwj Xeeb: JSL bearings muaj ntau hom (A, B, C, thiab lwm yam) thiab ntau qhov ntau thiab tsawg. Hom tsim nyog yuav tsum raug xaiv raws li qhov chaw teeb tsa, qhov xav tau ntawm kev thauj khoom, thiab hom kev txav.
Xav txog cov kev xav tau ntawm kev txhim kho: Qhov roughness ntawm lub mounting nto yog pom zoo kom tsawg dua Ra 3.2μm, thiab roughness ntawm mating nto yog pom zoo kom tsawg dua Ra 1.6μm kom ntseeg tau tias kev ua tau zoo thiab kev ua neej nyob.
Cim npe nrov: khoom-tus kheej-lubrication bushes-jsl l duab qhia rail bearings, Tuam Tshoj, khoom- nws tus kheej- lubrication bushes-jsl l duab qhia rail bearings lwm tus neeg, manufacturers, hoobkas
-
![SOLID-SELF-LUBRICATION --- JTW METRIC THRUST WASHER]()
SOLID-SELF-LUBRICATION --- JTW METRIC THRUST WASHERsaib ntxiv> -

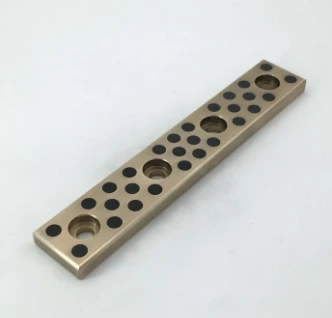

![SOLID-SELF-LUBRICATION BUSHES-JSP WEAR PLATE]()
